Fiber optic basics

Fiber optics are cylindrical and flexible components guiding light. They are made of a cylindrical core surrounded by a concentric cladding. The refraction index of the core (n1) is larger than the refraction index of the cladding (n2) so that total reflexion can occure at the core/cladding interface. Indeed, total reflexion happens for rays propagating in the core and contained in the cone centered on the optical axis and which half angle is :

.

Therefore, rays contained in this cone may be guided in the fiber optic.

is the numerical aperture and defines the acceptance angle .

θ₀ is different from α₀ because of the refraction at the fiber entrance (interface air/core). Note that the formula defining the numerical aperture is suitable for multimode fibers only, the numerical aperture for single mode fibers being defined with the half divergence angle of the gaussian beam with the fiber mode diameter w_f (see section below).

While Total reflexion is a basic and intuitive approach, it is nonetheless unsufficient to explain light wave guiding in fiber optics. To understand light propagation in fiber optics, it is necessary to consider light as an electromagnetic wave. Electromagnetic equations solved with adequate boundaries conditions at the core/cladding interface show that only some specific waves can propagate along the fiber. They are the fiber optic modes and are named LPmq modes. m corresponds the number of intensity minima along the azimuthal axis, while q is the number of intensity minima along the radial axis. Among all possible modes, one specific mode is called the fundamental mode (corresponding to LP01 mode) which is detailed further in this tutrorial. The graphic nearby illustrates schematically the relative intensity of a few low order modes.

One important parameter to charcacterize the fiber optic at a given wavelength is the normalized frequency :

where R is the core radius and λ is the wavelength. V indicates if the fiber optic is single mode or multimode. Indeed, the fiber optic is single mode if and multimode otherwise. Single mode means that the fundamental mode only can propagate. Note that a fiber optic is not intrinsically single mode or mutimode. It is single mode for wavelengths above the cut-off wavelength λ_c and multimode for wavelengths below λ_c. λ_c is defined as follows :

.

The normalized frequency V is also suitable to give an approximate value of the number of modes propagating in a highly multimode number : .

The intensity distribution of the fundamental mode (LP01 mode which is the unique mode guided in a single mode fiber) is close to a gaussian shape :
.

ω_f which is the radius of the fundamental mode can be approximated with following formula : .

ω_f is slightly larger than the core diameter. It shows that the fundamental mode propagates mostly in the core but also in the cladding through evanescent waves.

Transmission

There are 3 main linear phenomena perturbating light propagation in fiber optics : attenuation, modal dispersion and chromatic dispersion.

Because of absorption, Rayleigh scattering, microscocopic and macroscopic bendings (there are also non linear effects like Stimulated Brillouin Scattereing and Stimulated Raman Scattering that can occure but they are not discussed in this tutorial), the power transmitted in a fiber optic is attenuated. The Rayleigh scattering is proportionnal to λ^-4 and therefore induce a strong attenuation at short wavelengths. The intrinsic absorption is generally high at short wavelengths and in the infrared. Also, the absorption by OH- impurities can be significant at some wavelengths (for example 950 nm, 1250 nm or 1380 nm in silica fibers). Anyhow, the total attenuation depends on the wavelength and on the fiber length.

For a given wavelength, the attenuation factor A_b is generally given in dB/km. It expresses the relative power loss for a light wave propagating in a 1 km long fiber. For high loss fibers, the attenuation can also be expressed in dB/m. The graphic nearby shows the spectral attenuation of a silica fiber optic (silica is the most common fiber optic material used for optical communication). A_b is in the range of 3dB/km at 800 nm and 0.3 dB/km at 1550 nm.

In the general case, a fiber optic transmission is given by the following formula (L being the fiber length) :
.

Note that A_b is negative because it characterize an attenuation. However, it is generally specified as a positive number. Then the opposite value (negative value) has to be used in the formula. Note also that the precedent formula does not take into acount the Fresnel reflexion at the fiber ends. The full transmission is :
.
R_f is the Fresnel reflexion on the interface air/glass (and glass/air). Fresnel reflexion is generally not considered when the fiber is connected to another fiber with physical contact connectors inducing glass/glass interface at the fiber ends.

In a multimode fiber, modes have different velocities. Velocity decreases when mode order increases. Consequently, a fiber optic enlarges the duration of a light pulse and limits the bandwidth of signals propagating in the fiber. That can be detrimental for telecom or datacom applications for which the bandwidth is a key parameter. In a step index multimode fiber, the modal dispersion is given by the following formula : where dt is the pulse duration spread, n1 is the core index, n2 is the cladding index and c is the light velocity in the air. Multimode gradded index fibers have been developed to limit the modal dispersion. In this case, the core index decreases when the distance to the fiber axis increases. A schematic explanation is given by geometric optic : light rays having a larger angle with the axis ( corresponding to higher order modes ) have a longer geometrical path in the fiber compensated by a larger velocity because they propagate in lower index medium.

Core and cladding refraction indexes depend on wavelength. Therefore, waves propagating in a fiber optic at different wavelengths have different velocities. Real waves are never totally monochromatic : they have a certain spectrum width. Consequently, if they are propagating by pulses, the pulse duration is enlarged by the fiber optic. This phenomenom is caracterized by the chromatic dispersion factor Mc of the fiber optic ( pulse duration spread for a 1 nm spectrum width in a 1 km long fiber optic) and is mainly restricting the bandwidth in single mode fibers. The pulse spread induced by chromatic chromatic dispersion is given by : where dλ is the spectrum width. Mc not only depends on the fiber materials but also on the index profile and therefore on the wavelength. Thus, there are fibers for which the chromatic dispersion is minimized at certain wavelengths. That is the case for common single mode fibers used in optical communication at around 1300 nm.

Fiber coupling

Injecting light into a fiber optic is a recurring problem. For a maximum efficiency, the light source etendue has to the as close as possible to the fiber optic etendue. Whatever the optical system used, a quick calculation can give an idea of the maximum coupling efficiency C_max that can be achieved knowing the respective light source and fiber etendues eten_s and eten_f. In general, the light source etendue is larger than the fiber etendue and : . In the case where eten_s is smaller than eten_f, C_max = 1. This is for example the case when the light is emitted from a single mode fiber and injected into a multimode fiber which core diameter and numerical aperture (and thus etendue) are much larger.

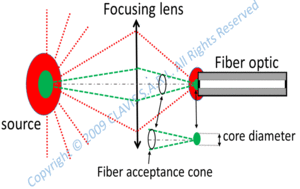

Also, the light source is in general not sufficiently close to the fiber optic for an efficient coupling and an optical system may be necessary to conjugate the light source with the fiber entrance. Only the rays in the fiber acceptance cone coming from a part of the source intercepting the core are injected in the fiber.

An efficient coupling into a single mode fiber can only be achieved with coherent sources (lasers). Indeed, as seen previously, only the fundamental mode LP₀₁ can propagate in a single mode fiber. when propagating in the air, the fiber mode is very similar to a gaussian wave. Therefore, only a gaussian beam is adapted to this wave. Such a spatially coherent beam can be emitted solely by a laser or from a single mode fiber with the same fundamental mode (in which a laser beam has been injected).

In other words, for a maximum coupling efficiency in a single mode fiber, one must use a laser emitting in the fundamental mode only (With a M² as small as possible). Lasers with large M² or uncoherent light sources are not suitable for a significant coupling in this kind of fiber optic which core diameter is generally a few microns and numerical aperture is around 0.1 - 0.15. Also, the laser beam has to be shaped in order to fit into the fiber optic core. This means that an optical system may be requested in order to focus the beam waist at the fiber entrance and obtain a beam waist radius as close as possible as the fiber mode radius.

One difficulty when injecting light into a single mode fiber is to focus the laser beam at the exact fiber entrance location. Because the core diameter is very small, the tolerance on the beam positionning is very tight.

Injecting a gaussian beam in a single mode fiber

As previously evocated, singlemode fibers request spatially coherent light from a laser. The coupling efficiency is given by the following formula:

.

ψ and ψ_f are the complex amplitude at the fiber entrance respectively of the laser beam and of the fiber mode. The XY plane coincides with the fiber entrance facet. Without any misalignments, which means that the laser beam and the fiber are concentric and the beam waist is located at the fiber entrance, the coupling efficiency becomes:

.

where w₀ is the beam waist radius and w_f is the fiber mode radius. This formula applies in the ideal case where M² = 1. Therefore, this formula shows that the coupling efficiency is optimized when the laser mode and the fiber mode coincide.

The coupling can be optimized in different ways depending on the incident beam.

Direct coupling may be a solution as for injecting light from a single mode fiber to another one with the same mode. The coupling ratio can then be close to 100%, especially if the fibers are in contact (the Fresnel reflexions are then very low) or if the fiber ends have anti reflection coatings.
Many lasers have collimated beams with waist dimensions much larger than the fiber mode. They generally request to use a single lens for focusing the waist with an adequate size on the fiber optic entrance. Some laser beams, like VCSEL (Vertical Cavity Surface Emitting Laser) beams have a very small waist located at the emitting surface and have a large divergence. In this case, the emitting surface has to be conjugated with the fiber entrance using one lens but preferably two lenses in order to minimize the spherical aberration: the first lens collimates the beam and the second one focuses it on the fiber entrance. These three common coupling configurations are illustrated in the three schemes below (from left to right: direct coupling, coupling with one lens, coupling with two lenses):

Whatever the configuration, the coupling efficiency ( C ) decreases when the waist radius ( w₀ ) of the injected beam moves away from the fiber mode radius ( w_f ), but also when the beam axis defocus ( dz ) ( with fiber plane entrance as a reference ), the lateral shift ( dy ) or the tilt ( i ) ( with the fiber axis as a reference ) increase.

Injecting an elliptical beam in a single mode fiber - basic

As evocated previously, the beam to be injected in a single mode fiber optic should ideally be gaussian. However, laser diodes beam for example do not have a symmetry of revolution. They are elliptical with different intensity distributions in the vertical and horizontal planes ( respectively YZ and XZ on the scheme). Spatially coherent laser diodes are assumed to have gaussian intensity distributions in the vertical and horizontal planes with different waists witdth. Beam emitted by other kinds of laser may also be elliptical, for example after some harmonic generation or other beam processing. In this paragraph, only elliptical beams with gaussian distributions are considered.

For an elliptical beam which axis coincides with the fiber axis and which waists are located at the fiber entrance, the coupling efficiency is :

.

w_x and w_y are the waist widths respectively in the XZ and YZ plane. This formula applies for fully coherent beams which means that M²_X = M²_X = 1.

Whatever the optical system used for coupling, an elliptical beam never fits exactly with a fiber optic mode. However, for a given ellipticity and a given fiber optic, it is possible to define the waist widths for which the coupling efficiency is maximum :

.

In any case, C is low if the ellipticity is large.

Depending on the elliptical beam, it is possible to use the same common coupling configurations than for gaussian beams (direct coupling, coupling with one lens, coupling with two lenses). For beams with a large ellipticity, it may be convenient to use cylindrical or toroidal lenses shaping the beam differently in the XZ and YZ planes and therefore making it gaussian for a better coupling. In this case, the advantage is also that the waists in each plane can be both focused at the entrance of the fiber while this is not systematic when using spherical optics.

In all cases, as for gaussian beams, the coupling ratio decreases as soon as the defocus increases or when the beam axis is laterally shifted or tilted.
